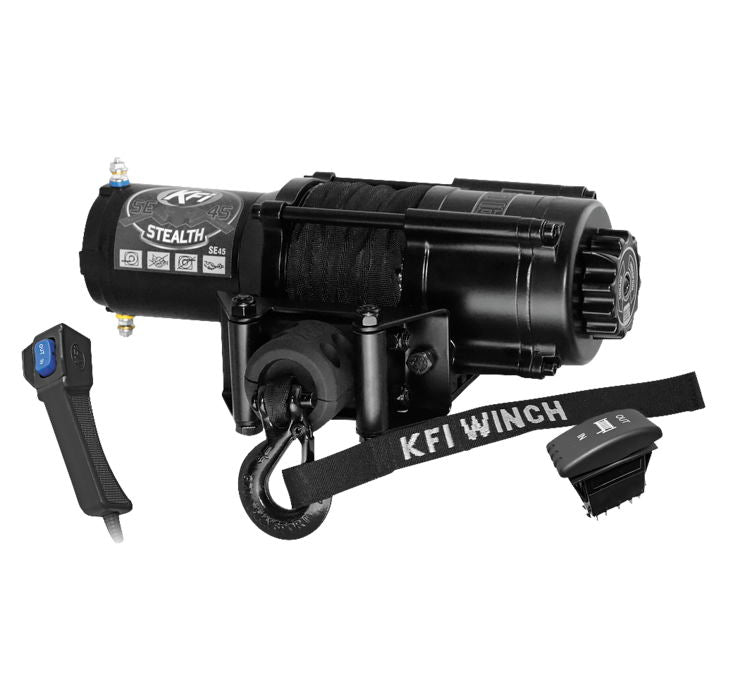

Features water-resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy-duty all metal turn clutch.
- Rated line pull: 4,500 lbs.
- Motor: 12-Volt DC, 1.7hp permanent magnet
- Gear ratio: 166:1
- Gear/Transmission: All-metal, planetary gear drive
- Brake: Dynamic and Mechanical.
- Clutch: All-metal, cam activated freespool
- Drum Size: 2"D x 3.19"L
- Standard synthetic cable: 15/64"D x 38'L
- Wide synthetic cable: 15/64"D x 52'L
- Fairlead: Multi-directional roller
- Control: Deluxe, handlebar-mounted, mini-rocker control switch with optional dash mount bracket and a heavy-duty corded remote switch
- Standard winch dimensions: 14.6"L x 4.55"D x 5"H
- Wide winch dimensions: 16.36"L x 4.55"D x 5"H
- Standard mounting bolt pattern: 3.00" x 4.875" 4-hole
- Wide mounting bolt pattern: 3.00" x 6.6" 4-hole
- One-year limited manufacturers warranty
- Winch weight: 36 lbs.
