KFI Products 5000 Assault Series Winch Wide

  • Sale
  • Regular price $505.00
Shipping calculated at checkout.

Snap Logo Lease for as low as $/week Learn More

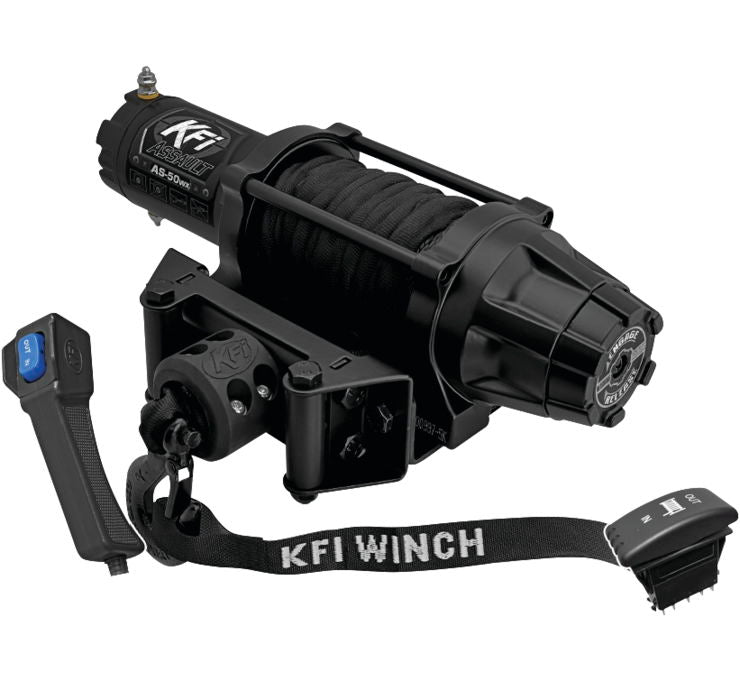

Each KFI Assault Winch Kit features blacked out, quality cast aluminum and durable, all steel gearing. Designed with a smaller profile to fit those UTVs that the 4,500 lbs. winch will not fit. The kit comes with a full complement of accessories: smoke colored synthetic cable, cable hook stopper, premium black roller fairlead, fairlead bracket for mounting to trailers or other non-ATV applications, UTV dash-mounted rocker switch, 14 ft. corded hand-held remote, black-plated hardware to bolt your winch to the winch mount, a newly designed Assault heavy-duty electric contactor that protects the electrical system, all required wiring and detailed installation instructions.

  • Two-year manufacturer's limited lifetime warranty.
  • Rated line pull: 5,000 lbs.
  • Gear reduction ration: 180:1
  • Motor: 1.22hp, permanent magnet
  • Synthetic cable: Standard: 38 ft. of 15/64"; Wide: 50 ft. of 15/64"
  • Mounting bolt pattern: Standard: 4.9" x 3"; Wide: 6.61" x 3"
  • Overall dimensions: Standard - 13.9"L x 4.45"W x 4.76"H; Wide - 15.63"L x 4.45"W x 4.76"H
  • Weight: Standard: 26 lbs.; Wide: 27.8 lbs.

Notes

  • The smaller profile on the Standard Assault winch will work on most ATV KFI Winch Mounts but requires the ATV handlebar Rocker Switch P/N 573911.
